ESB-Plus und ESB-Relais-Platinen

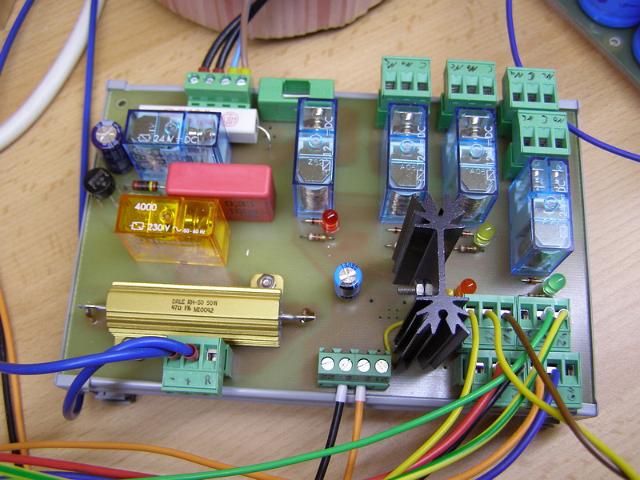

hier ist ein Prototyp von einer ESB-Relais-Platine V2.2, sie ist eine erweiterte Version der ESB-Plus, auf dieser Platine ist die ESB, das Entlade-Relais mit Entlade-Widerstand,
die 3 Relais für das BOB1 (Spindel-, Kühlung- und Zusatzrelais) sowie ein 12V-Schaltregler für die Relais und den PWM-Wandler
